cphidgettextlcd.h File Reference

#include "cphidget.h"

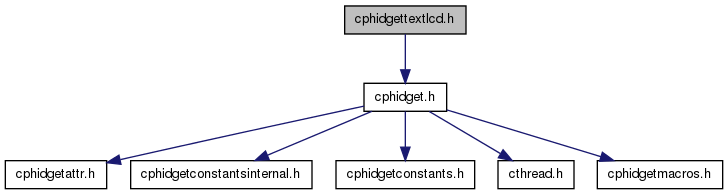

Include dependency graph for cphidgettextlcd.h:

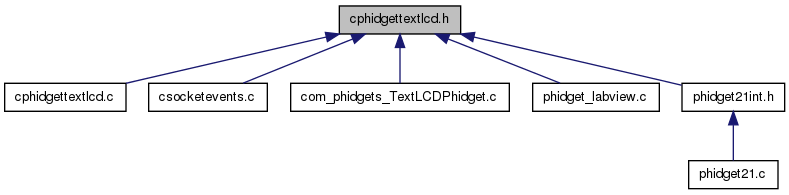

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	CPhidgetTextLCDInfo
Defines
#define	HD44780_CLEAR_DISPLAY   0x01
#define	HD44780_CURSOR_BLINK_ON   0x01
#define	HD44780_CURSOR_HOME   0x02
#define	HD44780_CURSOR_ON   0x02
#define	HD44780_DISPLAY_CNTRL   0x08
#define	HD44780_DISPLAY_ON   0x04
#define	HD44780_SET_CGRAM_ADDR   0x40
#define	HD44780_SET_DDRAM_ADDR   0x80
#define	TEXTLCD_BACKLIGHT_PACKET   0x11
#define	TEXTLCD_CGRAM_ADDR(x)   (x << 3)
#define	TEXTLCD_COMMAND_MODE   0x01
#define	TEXTLCD_CONTRAST_PACKET   0x12
#define	TEXTLCD_CURSOR_PACKET   0x00
#define	TEXTLCD_DATA_MODE   0x02
#define	TEXTLCD_ESCAPE_CHAR   0x00
#define	TEXTLCD_INIT_PACKET   0x13
#define	TEXTLCD_MAXCOLS   40
#define	TEXTLCD_MAXROWS   2
#define	TEXTLCD_MAXSCREENS   2
#define	TEXTLCD_SCREEN(x)   (x << 5)
Enumerations
enum	CPhidgetTextLCD_ScreenSize {   PHIDGET_TEXTLCD_SCREEN_NONE = 1, PHIDGET_TEXTLCD_SCREEN_1x8, PHIDGET_TEXTLCD_SCREEN_2x8, PHIDGET_TEXTLCD_SCREEN_1x16,   PHIDGET_TEXTLCD_SCREEN_2x16, PHIDGET_TEXTLCD_SCREEN_4x16, PHIDGET_TEXTLCD_SCREEN_2x20, PHIDGET_TEXTLCD_SCREEN_4x20,   PHIDGET_TEXTLCD_SCREEN_2x24, PHIDGET_TEXTLCD_SCREEN_1x40, PHIDGET_TEXTLCD_SCREEN_2x40, PHIDGET_TEXTLCD_SCREEN_4x40,   PHIDGET_TEXTLCD_SCREEN_UNKNOWN, PHIDGET_TEXTLCD_SCREEN_NONE = 1, PHIDGET_TEXTLCD_SCREEN_1x8, PHIDGET_TEXTLCD_SCREEN_2x8,   PHIDGET_TEXTLCD_SCREEN_1x16, PHIDGET_TEXTLCD_SCREEN_2x16, PHIDGET_TEXTLCD_SCREEN_4x16, PHIDGET_TEXTLCD_SCREEN_2x20,   PHIDGET_TEXTLCD_SCREEN_4x20, PHIDGET_TEXTLCD_SCREEN_2x24, PHIDGET_TEXTLCD_SCREEN_1x40, PHIDGET_TEXTLCD_SCREEN_2x40,   PHIDGET_TEXTLCD_SCREEN_4x40, PHIDGET_TEXTLCD_SCREEN_UNKNOWN }
Functions
PHIDGET21_API int CCONV	CPhidgetTextLCD_initialize (CPhidgetTextLCDHandle phid)
